High brightness widely application hdni strip 8.8 inch lcd touch slim monitor stretch bar ultra screen display
strip screen-3
$300
Feature: search ads display ads;rtb display;responsive ads gdn;responsive ads display
Size: 10.1'';13.3'';15.6'';19'';21.5'';27'';32'';50'';55'';65'';75'';85'';98'';100'';110'';18.5'';24'';43'';49'';20cmx20cm;25cmx25cm
Operation System: Android;Windows
Screen: Touchscreen
Installation: Vertical;Horizontal;Wall-mounted;Portable
Type: Advertising Machine;Digital Signage Display;Splicing Screen Advertising Machine
Product Details
Product Details
Slim Body · Powerful Core Ultra-Thin Strip Bar Screen: Android System Supports 1080P HD Decoding
In the era where smart display devices pursue ultimate portability and performance, Guangzhou Ruiguan Electronic Equipment Co., Ltd.'s ultra-thin Strip Bar Screen redefines the industrial design and performance standards of commercial display devices with its 15.8mm slim body and 1080P HD decoding capability on the Android system. This series integrates lightweight structural design, powerful hardware configuration, and industry adaptability, making it the preferred solution for scenarios such as elevator advertising, intelligent device integration, and mobile guidance.
I. Slim Design: Redefining Spatial Aesthetics
The core breakthrough of the ultra-thin Strip Bar Screen lies in its extreme lightweight industrial design:
Body thickness as low as 15.8mm (e.g., 35-inch model), equivalent to the width of a smartphone, which is more than 70% thinner than traditional advertising machines (usually >50mm thick). This design allows it to be embedded in elevator side walls, shelf gaps, or vehicle-mounted guide bars, occupying no extra space and perfectly integrating into the decoration environments of high-end malls and office buildings.
Material and Craftsmanship: Made of aviation-grade aluminum alloy frames and tempered glass panels, it weighs only 1.05kg (net weight of the 35-inch model) and supports single-hand installation. The body surface undergoes anodizing treatment, which is wear-resistant and corrosion-resistant, while offering multiple color customization options (e.g., silver gray, space gray) to match corporate VI styles.
Despite its slim body, the structural strength does not compromise: it passes the 1.2-meter drop test and vibration test, ensuring no damage during transportation and installation, making it suitable for rapid deployment of chain brands nationwide.
II. Powerful Core: Performance Revolution Driven by the Android System
1. Hardware Configuration: Effortless Multitasking
Processor: Equipped with an Allwinner A40I quad-core processor (1.5GHz main frequency) or S700 quad-core A53 chip (28nm process, 30% improved energy efficiency ratio), combined with 1-2GB DDR3 memory, it can simultaneously run tasks such as video playback, network transmission, and peripheral control, with a response speed of
1. Full-Function Interface Layout
Basic Interfaces: USB OTG×1 (for external USB drives/cameras), USB HOST×1 (for connecting keyboards/mice/printers), RJ45×1 (10/100Mbps Ethernet), Micro SD×1, HDMI OUT×1, LINE OUT×1 (audio output), DC 12V×1, meeting the needs of content transmission and peripheral expansion.
Industry Customized Interfaces: Supports adding RS232/RS485 serial ports, adapting to industrial sensors (e.g., temperature, pressure monitoring) or intelligent terminals (e.g., medical device operation screens). For example, in smart retail scenarios, connecting a QR code scanner via USB HOST allows the Strip Bar Screen to automatically play 3D product models and usage tutorials when customers scan codes.
2. Smart Networking and Energy-Saving Design
Dual-Mode Network Connection: Standard 2.4G WiFi (802.11b/g/n), optional 5G WiFi module (3× faster transmission speed), supporting OTA remote upgrades (USB/TF card/network multi-modes), reducing manual maintenance costs.
Scheduled Power On/Off and Low Power Consumption: Built-in real-time clock battery, supporting daily/weekly cyclic scheduled tasks (e.g., automatically playing news at 8 AM on working days at 10 PM), with maximum power consumption ≤45W and standby power consumption ≤0.5W, annual power consumption of only about 105 kWh, compliant with EU RoHS environmental standards.
IV. Industry Applications: Scenario Penetration from Advertising to Industry
1. Elevator Advertising: The Optimal Solution for Space-Constrained Scenarios
In narrow spaces like elevators, the 15.8mm thickness advantage of the ultra-thin Strip Bar Screen is
Vertical Advertising: The 35-inch model (display size 880.4×50mm) can be installed on elevator side walls, with a 1920×158 resolution fully displaying vertical advertising videos. With the 1000cd/㎡ high-brightness version, the content remains clear even in dim elevator lighting. Data from an elevator media company shows that the ad click-through rate of the ultra-thin Strip Bar Screen is 18% higher than traditional horizontal screens.
Intelligent Linkage: Connects to elevator button panels via Bluetooth, automatically playing promotional information for shops on the pressed floor, enhancing conversion rates.
2. Industrial and Vehicle Displays: Both Durability and Real-Time Performance
Industrial Equipment Operation Screens: In production lines or instruments, the ultra-thin Strip Bar Screen serves as a human-machine interface, displaying real-time equipment operation parameters (e.g., rotation speed, temperature) via RS232 serial ports. The 15.8mm thickness can be embedded in equipment casings, avoiding the obtrusiveness of traditional display screens.
Vehicle Mounted Guide Screens: Installed in buses and subway carriages to display route information and stop reminders, with lightweight design reducing vehicle load and -20℃~60℃ wide-temperature operation adapting to high and low-temperature environments.

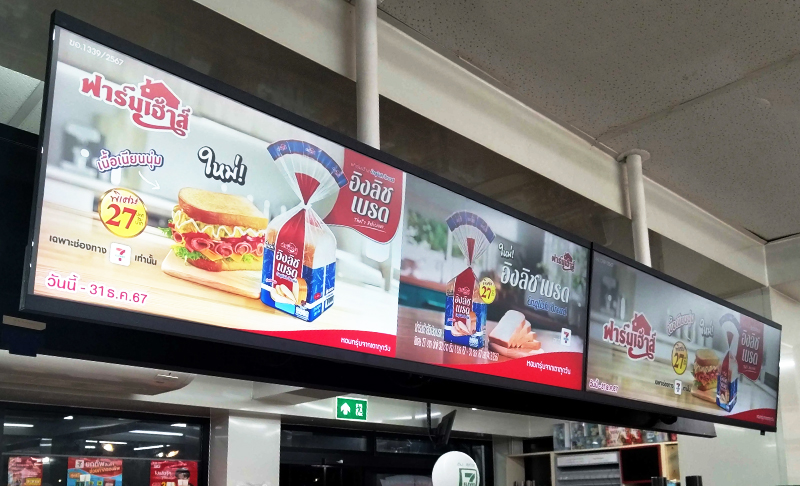

3. Mobile Retail and Exhibitions: Portability Drives Flexible Deployment
In temporary scenarios like pop-up stores and exhibitions, the portability advantages of the ultra-thin Strip Bar Screen are prominent:
Plug and Play: Plays content via direct Micro SD card insertion, displaying product information without internet access, and completing device setup within 5 minutes;
Lightweight Transportation: Single-unit gross weight only 3.7-11kg (different sizes), with a total weight of <64kg for 5 units in a case, supporting air transportation and manual handling, reducing logistics costs.
V. Technical Parameters and Reliability
Item | Typical Configuration |
Body Dimensions | 35-inch: 891.6×60.4×15.8mm (L×W×H), 28-inch: 729×161×47.5mm (other sizes available) |
Weight | 35-inch net weight 1.05kg, 28-inch net weight 5kg, 37-inch net weight 8.5kg |
Display Parameters | Resolution 1920×158 to 1920×540, brightness 500-1000cd/㎡, refresh rate 60Hz |
Certifications | CE, FCC, RoHS |
Warranty | 2-year Complete Machine warranty, 5-year backlight life warranty |
The ultra-thin Strip Bar Screen passes the 1000-hour continuous operation test with a failure rate of less than 0.1% and provides an SDK development kit to assist customers in quickly integrating industry-specific functions (e.g., medical device data docking, retail ERP system linkage).
