Guide to installation mode and size adaptation of Ruiguan wall-mounted advertising machine display screen (A)
wall mounted advertising machine- 19
$100
Feature: wall-mounted advertising machine;wall-mounted advertising display screen;lcd advertising machine;lcd advertising display screen
Size: 10.1'';13.3'';15.6'';19'';21.5'';27'';32'';50'';55'';65'';75'';85'';98'';100'';110'';18.5'';24'';43'';49'';20cmx20cm;25cmx25cm
Operation System: Android
Screen: Touchscreen;Non-touch screen
Installation: Horizontal;Wall-mounted
Type: Advertising Machine;Digital Signage Display
Product Details
Product Details
≤65-inch hanging+> 65-inch reinforced wall hanging:
A, wall-mounted advertising machine display screen installation mode division basis: scientific adaptation of size and weight.
Core division logic: take 65 inches as the dividing point, and determine the installation method according to the weight and structural strength of the model.
For models ≤65 inches (10.1-65 inches), the weight of the whole machine is ≤80kg (for example, 65 inches is about 75kg), and the fuselage frame and load-bearing structure can adapt to the hanging force; > 65-inch wall-mounted advertising machine display screen models (75-110 inches) weigh more than 100 kg (about 110kg for 75 inches and 220kg for 110 inches), far exceeding the load-bearing limit of the hanging rack (the maximum load-bearing capacity of the conventional hanging rack is 80kg), and it is easy to shake due to airflow and vibration after hanging, which has potential safety hazards, so only enhanced wall hanging is supported.

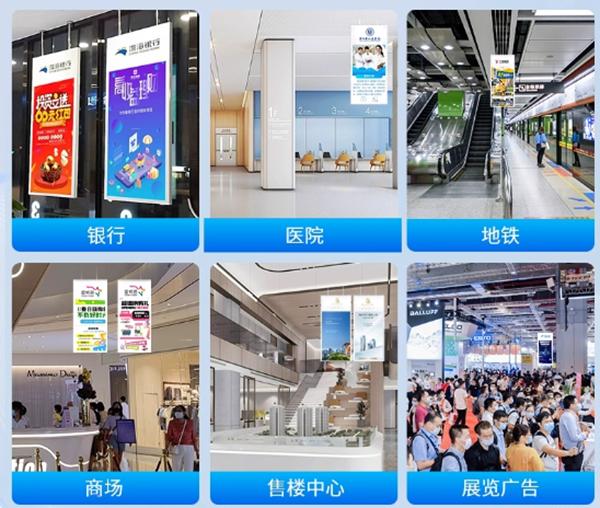

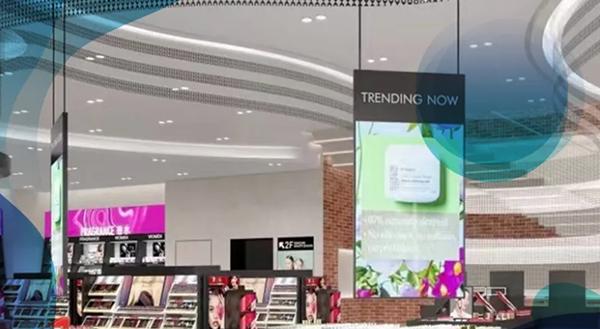

The size of the wall-hung advertising machine display screen is related to the installation scene: the model of ≤65-inch wall-hung advertising machine display screen is mostly used in elevators, shopping malls, hotel corridors and other spaces, and it is often necessary to deal with the scene of "no suitable wall" (such as glass curtain wall and open space), and the hanging installation can flexibly use the air space; > 65-inch wall-mounted advertising machine models are mostly used in large supermarkets, exhibition centers, government halls and other open areas.
It is necessary to rely on solid walls to bear the weight, strengthen wall-mounted to ensure long-term stable operation, and at the same time avoid screen deformation caused by large screen suspension of wall-mounted advertising machine display screen.

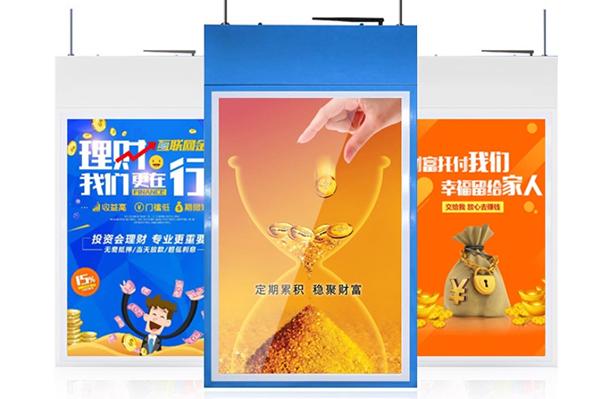

B, ≤65 inch wall-mounted advertising machine display screen model: hanging installation scheme and details.
Hanger configuration and hardware support: customized aluminum alloy hanger is standard for the wall-hung advertising machine display screen.
The frame body is made of 6063-T5 aluminum alloy, and the surface is sprayed with rust-proof coating.
The bearing capacity of a single frame is 80kg, and the wall-hung advertising machine display screen is adapted to the full size of 10.1-65 inches. For the 27-65-inch medium-sized and large-sized hanging models, the design of "double hooks+reinforced beams" is adopted.
The hooks are precisely butted with four reserved bearing holes on the back of the fuselage (the aperture is 8mm), and the length of the beams is adjusted with the size (the length of the 65-inch beams is 120cm), which disperses the weight of the whole wall-hung advertising machine display screen and avoids the bending of the frame caused by long-term suspension.
The hanger is also equipped with a horizontal calibration scale (accuracy 1), which can quickly adjust the angle of the equipment during installation to prevent the picture from tilting.
Hanging installation process and matching of wall-hung advertising machine display screen: the standard hanging set includes hanging frame main body, expansion screw (suitable for concrete/steel structure ceiling), level meter, wrench and other accessories, without additional procurement.
The installation of wall-mounted advertising machine is divided into three steps:
Step 1, mark the drilling position on the ceiling or beam (the spacing is consistent with the beam of the hanging rack), and the drilling depth is more than or equal to 8 cm, and implant expansion screws to fix the hanging base of the wall-hung advertising machine;
Step 2, splicing and locking the wall-hung advertising machine equipment and the hanging rack (connected through the screw holes on the back of the machine body), and lifting the equipment cooperatively by two people and hanging it on the base hook;
Step 3, calibrate the levelness of the picture with a level, and fine-tune the hook position of the wall-hung advertising machine to ensure no deviation, and the debugging can be completed within one hour by a single person. At the same time, it supports height adjustment (1.2-3.5 meters), which can be flexibly set according to the line of sight height of people (2.5-3 meters above the ground is recommended) to avoid occlusion or inconvenient viewing.
(Unfinished)
