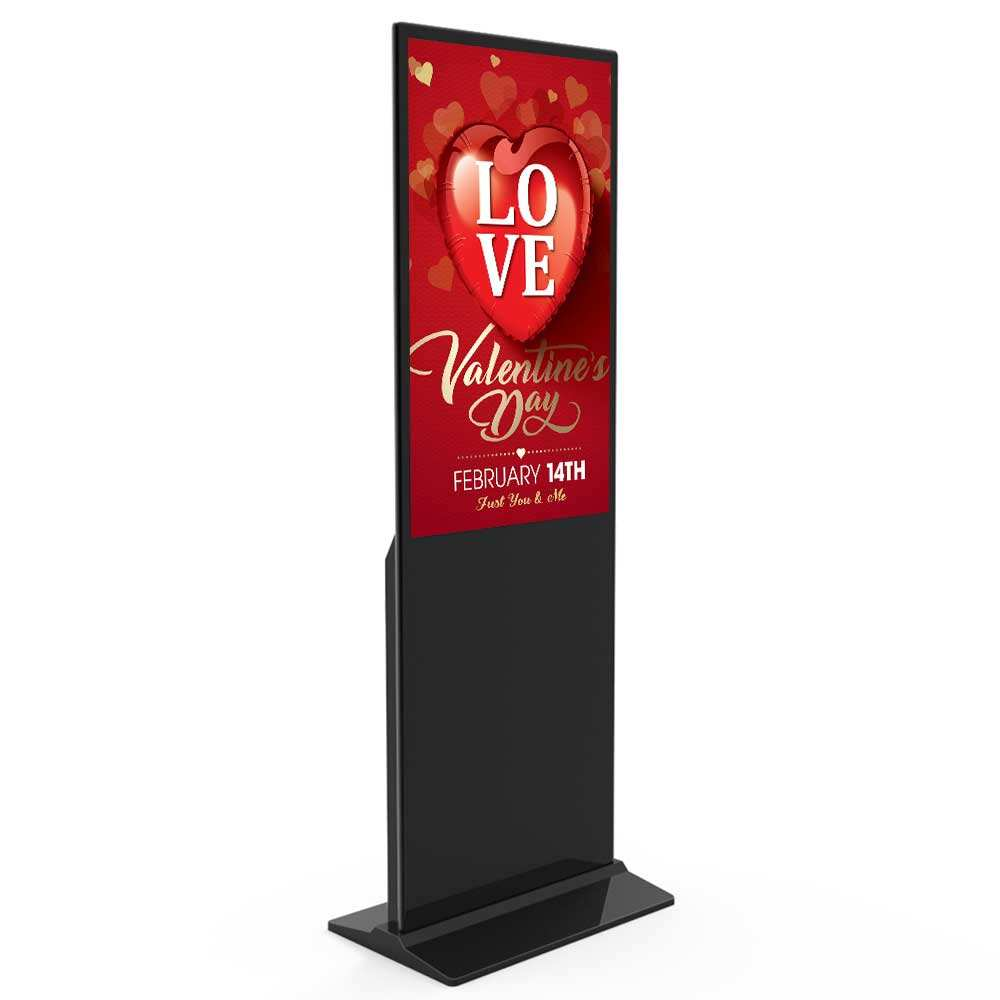

Floor standing digital signage display LCD totem kiosk indoor advertising playing screen equipment
vertical advertinsing screen-3
$400
Feature: vertical advertising display machine;advertising display screen;touch display screen refrare;no touch vertical display screen
Size: 50'';55'';65'';75'';85'';98'';100'';110''
Operation System: Android;Windows
Screen: Touchscreen
Installation: Vertical;Portable
Type: Advertising Machine;Digital Signage Display
Product Details
Product Details
Vertical Advertising Display Material Introduction
1. Product Overview
The vertical advertising display from China Ruiguan Electronic Equipment Co., Ltd. is a high-end commercial display device featuring advanced OLED technology and premium AUO panel. Designed specifically for commercial advertising, information display, and digital signage applications, this product stands out with its exceptional image quality, reliable performance, and sophisticated design, making it an ideal choice for various commercial environments.
2. Core Display Materials and Technology
2.1 OLED Display Panel
Our vertical advertising display utilizes cutting-edge OLED (Organic Light-Emitting Diode) technology with panels supplied by AUO, a global leader in display manufacturing. OLED technology features self-emissive pixels that can individually turn on and off without requiring a backlight module, enabling our display to produce true blacks and near-infinite contrast ratios.
The OLED panel structure consists of:
Substrate layer: 0.7mm tempered glass with anti-glare surface treatment
Organic emission layer: Multiple organic compound layers including hole transport layer, emission layer, and electron transport layer
Encapsulation layer: Thin-film encapsulation technology to prevent oxygen and moisture penetration
Touch layer (optional): Nano-silver conductive film for high-sensitivity touch functionality
2.2 Display Specifications
Aspect ratio: 16:9 golden ratio for optimal video content presentation
Pixel structure: True RGB arrangement with each pixel comprising three sub-pixels
Pixel pitch: 0.10375mm(H)×0.31125mm(V), pixel spacing 0.31125mm×0.31125mm
Response time: 5ms ultra-fast response for blur-free motion
Maximum resolution: 1920×1080 Full HD with pixel-to-pixel display
Contrast ratio: 3000:1 for rich dark details
Brightness: 300cd/m² suitable for various lighting conditions
Viewing angle: 89°/89°/89°/89° (U/D/L/R) with minimal color shift
Display colors: 16.7 million colors (8-bit) with smooth gradation
3. Chassis Structure and Materials
3.1 Housing Materials
The display housing combines premium aluminum alloy frame with high-strength engineering plastics:
Front bezel: 5mm aviation-grade aluminum alloy with anodized surface (H32 hardness)
Rear cover: 1.2mm galvanized steel sheet with anti-corrosion powder coating
Frame: Seamless molding technology with IP54 dust/water resistance
Base: Zinc alloy die-cast counterweight base (8.5kg) for enhanced stability
3.2 Structural Design
Overall dimensions: 613.6mm(H)×356.85mm(W)×158mm(D)
Active display area: 597.6mm×336.15mm with over 92% screen-to-body ratio
Thermal design: Honeycomb ventilation with copper heat pipe cooling system
Mounting options: Wall-mount, floor-standing, and ceiling suspension
Protection: 4mm tempered glass front panel with Mohs hardness 7
4. Internal Components Materials
4.1 Mainboard and Chipset
Processor: Rockchip RK3588 quad-core Cortex-A76
Memory: 4GB LPDDR4X @2133MHz
Storage: 32GB eMMC 5.1 with TF card expansion
Video processor: Realtek RTD2893 with HDR10+ support
Network module: Gigabit Ethernet + Dual-band WiFi + Bluetooth 5.0
4.2 Interface Materials
HDMI: Gold-plated contacts with 10,000+ insertion cycles
USB: Type-A 3.0 with 5Gbps data transfer rate
Audio jacks: Nickel-plated for corrosion resistance
Power connector: Flame-retardant PC material (UL94 V-0)
4.3 Audio System
Speaker units: Dual 3W full-range drivers with neodymium magnets
Enclosure: 0.8L sealed chamber with 80Hz low-frequency response
Diaphragm: 45mm composite fiber material
Audio processing: Dolby Audio and DTS decoding support
5. Power System Materials
Power adapter: Delta Electronics industrial-grade solution
Input voltage: Wide range (90-220V AC) for global compatibility
Output voltage: 12V DC±0.6V with <50mV ripple
Efficiency: >85% (Energy Star 8.0 compliant)
Cables: 3×0.75mm² copper core with PVC insulation
Standby power: ≤0.5W exceeding EU ErP requirements
6. Environmental Durability Materials
6.1 Operating Environment
Temperature: 0°C to 50°C with auto-brightness adjustment
Humidity: 20% to 90% RH (non-condensing) with conformal coating
Altitude: ≤3000m suitable for highland areas
6.2 Protection Features
ESD protection: 8KV contact discharge tested
Surge protection: Built-in TVS diodes
EMI shielding: Full metal enclosure (FCC Part15 compliant)
Anti-glare: 25% haze AG coating
7. Special Function Materials
7.1 Touch Version (Optional)
Touch technology: IR or capacitive touch options
Accuracy: ±1mm with 10-point multi-touch
Surface hardness: Mohs scale 7 scratch-resistant
Touch lifespan: >50 million clicks
7.2 Ambient Light Sensor
Sensor type: AMS TSL2591 high-precision light sensor
Brightness adjustment: 50-300cd/m² (256 steps)
Response time: <200ms
8. Safety and Certifications
Electrical safety: CCC, CE, UL certified
Environmental: RoHS, REACH compliant
Flame resistance: UL94 V-0 rated materials
EMC: EN55032 Class B compl
