32 Inch yoga smart fitness display gym touch screen home workout mirror machine
fitness mirror screen-8
$530
Feature: cheap monitors with hdmi;retina display monitor;540 hz monitor;1080p 120hz monitor
Size: 50'';55'';65'';75'';43'';49''
Operation System: Android;Windows
Screen: Touchscreen;Non-touch screen
Installation: Vertical;Horizontal;Portable
Type: Advertising Machine;Digital Signage Display;Fitness Mirror Display
Product Details
Product Details
Installation Methods and Dimension Design of Mirror Fitness Machine Monitors
Guangzhou Ruiguan Electronic Equipment Co., Ltd.’s mirror fitness machine monitor series offers a full-size product matrix and flexible installation solutions to meet the space adaptation needs of home, gyms, and commercial complexes. From compact 32-inch models to customized large-scale specifications, their installation methods and dimension designs deeply integrate industrial aesthetics and functional practicality, achieving the dual goals of "screen invisibility" and "visual immersion" through structural innovations.
I. Space Adaptation Logic of Full-Size Specifications
Ruiguan's mirror fitness machine monitors are available in a complete product line from 32 inches to larger sizes. Each model is designed with a "golden visual ratio," adopting a 16:9 display proportion to ensure that the screen content conforms to ergonomic viewing habits. The display area of small-size models (such as 32 inches) is 608mm (horizontal) × 342mm (vertical), with a body thickness of only 42mm. Combined with a lightweight design (approximately 15kg overall weight), they are suitable for single-person easy installation on home walls or in small fitness cabins. The display area of medium-size models (such as mainstream specifications) expands to 608mm (horizontal) × 941.2mm (vertical).
II. Technical Innovations in Multi-Scenario Installation Methods

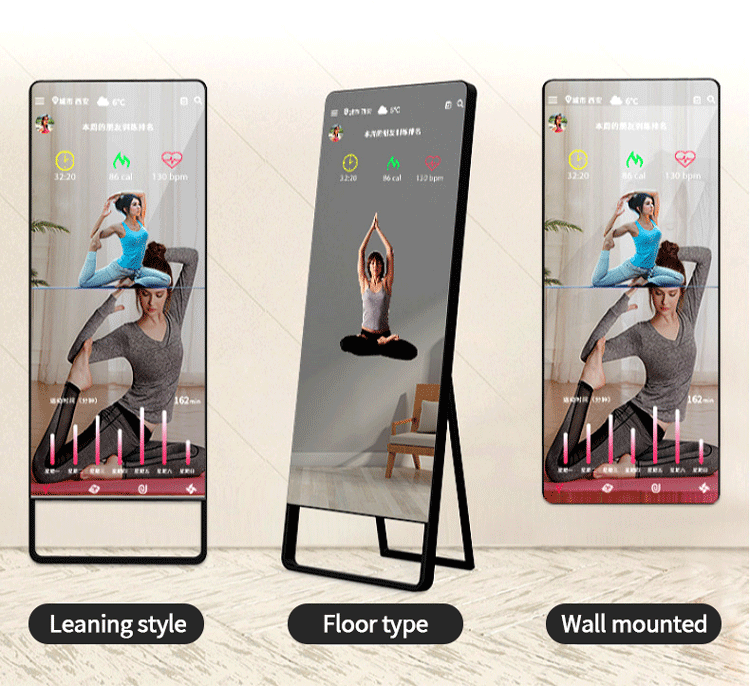

Ruiguan has developed three core installation systems for different usage environments:
1. Embedded Installation: A Minimalist Solution for Space Integration
Using 304 stainless steel frames as installation frameworks, the monitors are completely embedded in the wall through pre-grooved wall openings, achieving the visual effect of "screen flush with the wall." This installation method is suitable for customized fitness areas in home renovations or fixed course rooms in commercial gyms, effectively saving space and enhancing overall aesthetics. During installation, the stainless steel frame not only provides structural support but also includes built-in heat dissipation channels to ensure the stability of large-screen models during long-term operation. For example, in high-end yoga studios, embedded mirror monitors can integrate with mirrored walls, allowing users to switch courses with a light touch of the screen without additional space occupation.

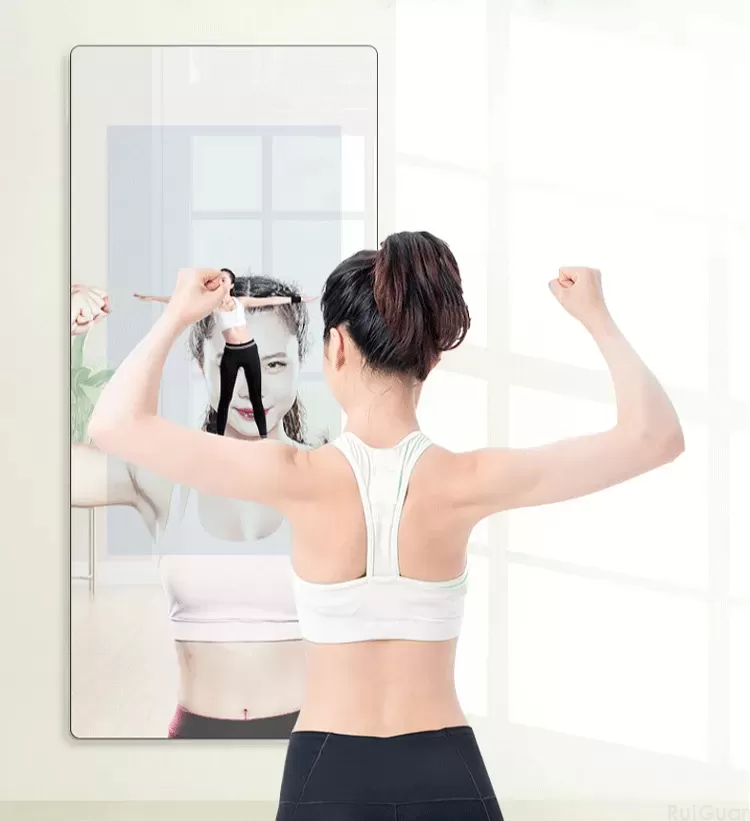

2. Wall-Mounted Installation: A Flexible and Universal Solution
Standard VESA-compliant wall-mounting interfaces (such as 300mm×300mm hole positions) support installation with universal wall brackets or rotating brackets. For 32-inch to 43-inch models, the wall brackets can achieve ±15° pitch angle adjustment to adapt to the viewing angles of users of different heights. For larger-size models, reinforced metal brackets with a load-bearing capacity of over 50kg are used, equipped with anti-detachment safety latches to ensure hanging stability. Home users can use this method to install monitors on living room or bedroom walls, replacing traditional decorative mirrors with mirror functions. Small gyms can flexibly arrange multiple devices in limited spaces to form compact training areas.

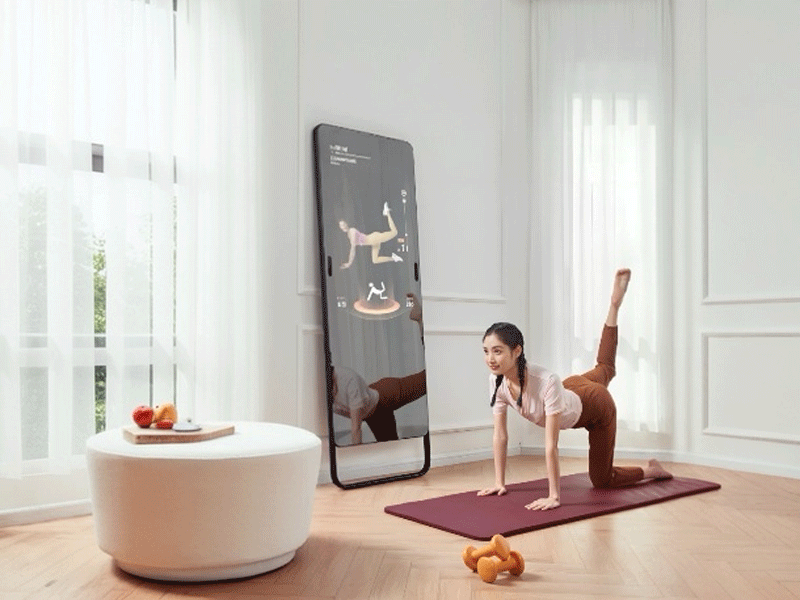

3. Floor-Standing Installation: A Landmark Solution for Independent Scenarios
For scenarios where fixed walls are unnecessary, detachable floor stands with universal wheels (with braking functions) are introduced for easy movement and position adjustment. Floor-standing models use thickened metal bases (weighing approximately 20kg) to ensure body stability and support height adjustment (1500mm-1800mm adjustable) to adapt to different floor heights and user heights. Commercial fitness centers can use this installation method to set up independent fitness stations in open training areas, allowing users to easily move them to windows or rest areas for self-training combined with mirror functions. Corporate fitness rooms can build flexible group course spaces with multiple floor-standing devices.
III. Safety and Durability of Structural Design
All models adopt a "one-piece fixing of screen and mirror" structure, connected by high-strength silicone seals between the glass mirror and display screen to prevent water vapor from invading electronic components. The mirror material is nano-silver-plated glass with a surface hardness of 6H, offering better scratch resistance than ordinary mirrors, suitable for high-frequency use scenarios. The body shell is made of ABS engineering plastic, certified for fire resistance (UL94 V-0) and anti-corrosion treatment, capable of stable operation in environments with humidity up to 85%. For high-humidity areas (such as gyms beside swimming pools), an optional electric heating anti-fog film can quickly disperse water mist through heating wires on the back of the mirror, ensuring clear display.
IV. Standardized Installation Processes and Customized Services
Ruiguan provides standardized installation manuals and video guides for different size models, allowing home users to complete wall-mounted installations through illustrated tutorials (average time: 30 minutes). For commercial projects, professional teams offer full-process services including surveying, design, installation, and debugging—for example, customizing unified embedded installation solutions for chain gyms or designing hidden wiring layouts for hotel fitness centers to ensure seamless integration of equipment with decoration styles. In addition, for special size requirements (such as curved walls or irregular spaces), the R&D team provides customized structural component services, achieving non-standard installation solutions through 3D modeling and CNC processing, truly realizing the design concept of "space as the monitor, display as the environment."
